5685 Local Area Steady State Dc Ionizing Air Bar1

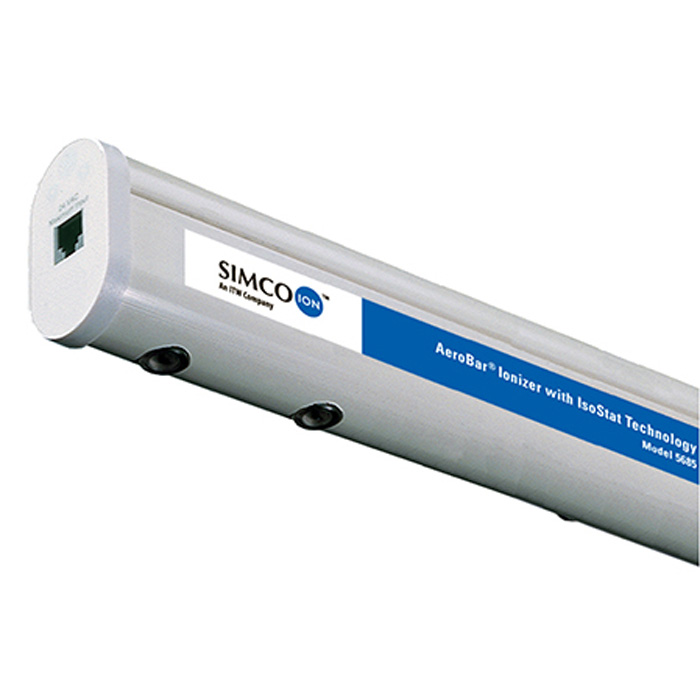

AeroBar® 5685 SSDC Ionizing Bar

Input Voltage	24 VAC (±10%), 50-60 Hz, 3.5W (max)
Balance	±50V @ 24” measured directly below two opposite polarity emitter points (Model 5685 must be mounted at least 6” away from grounded surfaces for optimum balance performance)
Discharge	25 sec or less for ±1000V to ±100V discharge @ 24” with min 60 fpm airflow
Ion Emission	Steady State DC
Emitter Points	Single-crystal silicon, machined titanium
Dimension	2.1H x 1.13W x 11, 22, 44, 64L in. (5.3H x 2.9W x 27.9, 55.9, 111.8, 162.6L cm)
Weight	9 oz per foot of bar length (255g per 0.3m)

Category: General Purpose

Description

Steady State DC Ion Emission with Intrinsically Balanced Ionization

Simco-Ion’s AeroBar Ionizer Model 5685 is designed to control static charge in mini-environments, laminar flow hoods and workstations. The Model 5685 features a unique aerodynamic design that ionizes a local area without disrupting laminar flow. Ideal in 12-24 inch distance applications with laminar air flow, the Model 5685 utilizes steady-state DC ion emission and Simco-Ion’s IsoStat® Technology. IsoStat technology guarantees intrinsically balanced ionization. No complicated feedback circuits are required to maintain balance and adjustment is never needed.
