Model 6110/6110A

Input Voltage 24 VAC, <1W from transformer
Discharge ±1,000 to 100V, <4 sec; tested in accordance with ANSI/ESD STM3.1-2006
Balance Better than ±25V @ 6 in. (15.2 cm)
Ion Emissions Steady-state DC
Dimension 2.2D x 3.1L in. (5.6D x 7.9L cm) not including fittings
Weight 6 oz (170.1g)

In-line Ionization Reduces ESD Damage and Microprocessor Lock-up

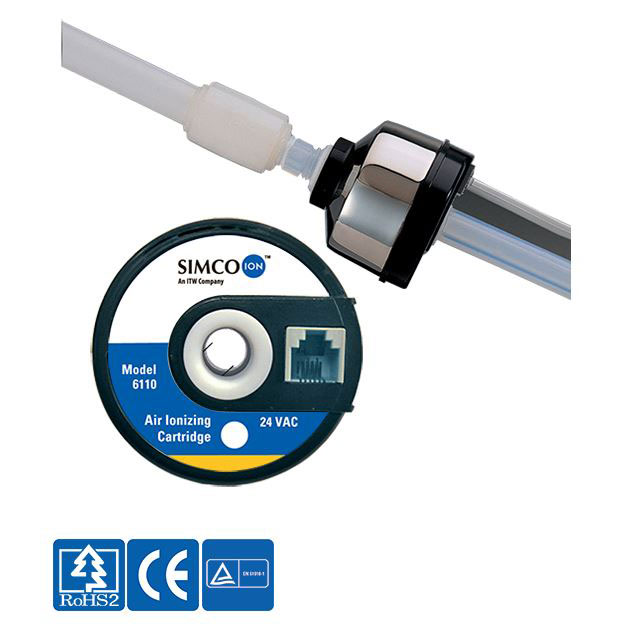

Simco-Ion’s Air Ionizing Cartridge Model 6110 is compact and rugged and can be used either for in-line ionization or as an ionizing blow-off gun. For in-line use, connect the 6110 to a compressed air source and it is ready to ionize any type of production equipment or attach the 6110 to an ordinary air gun and the airstream is ionized for effective particle removal. An internal sensor initiates ionization only when the gun is triggered, ensuring on-demand control of static charge (Model 6110A).

  • IsoStat® technology
  • Internal air flow sensor (Model 6110A)
  • Shielded emitter points
  • Compact size
  • Optional blow-off gun kit

Download Datasheet

 Model 6110
